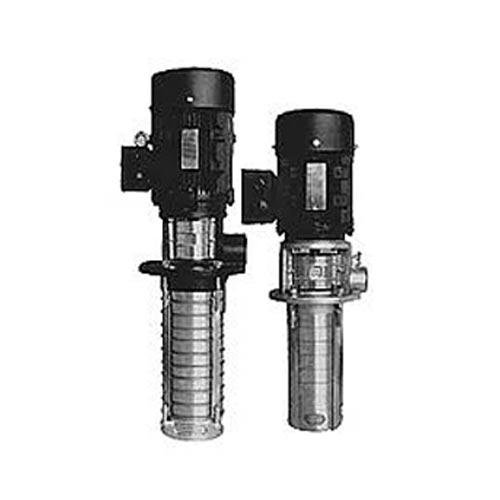

CDLK/F Series Immersion Multistage Centrifugal Pump

Performance Range :-

Flow Range (Q)	0.4-55.0 M3/hr
Delivery Head	Max. 305 mtr (30.5 Bar)
Liquid Temperature	-15°C~+120°C
Speed (n)	2900 rpm
Power (P)	up to 45 kW
MOC	SS-304 & SS-316

Key Features :-

• CDLKF is a Non Self Priming multi stage centrifugal pump installed with standard motor.
• The motor shaft is directly connected to the pump.
• These pumps are compact, highly reliable, low maintenance and easy to install. This immersion multistage pump has Flow Range(Q) 0.4-55.0 M3/hr and Liquid Temperature -15°C – +120°C.
• Stainless steel 304 or Stainless steel 316.
• The pump head and suction & discharge head can be made of cast iron on request too.
• 60 Hz pumps are also available on request

Major Applications :-

• High rise buildings
• CNC Lathe
• Grinding machines
• Processing centers
• Cooling devices
• Industrial cleaning equipmen
• Filtering systemTextile systems
