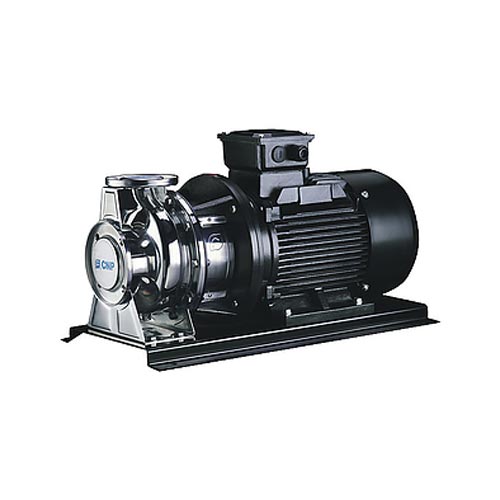

ZS Series Horizontal Single-Stage Centrifugal Pump
Features
| Flow Range (Q) |
3.0 – 200 m³/hr |
| Delivery Head |
Max. 70 mtr (7.0 Bar) |
| Liquid Temperature |
-20 oC~+ 70 ° C |
| Speed (n) |
2900 rpm |
| Power (P) |
up to 37 kW |
| MOC |
SS-304 and SS-316 |
Light weight and sturdy structure Energy efficient .
Pump design according to DIN24255, All the parts contact with liquid made of stainless steel with high efficiency. Standard TEFC IEC B35 motor driven, single phase up to 2.2kw. Max. working pressure 10 bar.
Performance Range
- ZS Stainless steel horizontal single – stage centrifugal pump is made by advanced techniques such as pressing bulging welding of corrosion resistant plate.
- It is a new generation centrifugal pump and replaces a traditional pump.
- It features beautiful appearance, light and handy structure, high efficiency and energy saving, durable, corrosion proof, low noise, etc.
Applications
- Water supply
- Industrial liquid transfer
- Water treatment, filtration
- Slightly corrosive chemical transfer
- Water supply: filtration in water works, transportation and subarea water carriage, pressurization of the main duct ;
- Industrial pressurization: flow wetting system, cleaning systems
- Transportation of industrial liquid: water supply of boiler, condensed systems, cooling and air conditioning systems, Machine tool support, light acid, and alkali transportation
- Water treatment: distilled water system or separator, swimming pool, etc.
- Irrigation of agricultural land, petrochemical industry, medicine, and sanitation, etc
Click here to Open Catalogue
