| Flow Range(Q) | 5 – 45 m3/hr |
| Delivery Head (H) | Max. 725 mtr (72.5 Bar) |
| Liquid Temperature | -15 °C~ + 70 °C |
| Speed (N) | 2900 rpm |
| Maximum Working Pressure | 75 Bar |
| MOC | Duplex Steel (SS-904L) |
| Power (P) | Upto 52 X 2 kW |

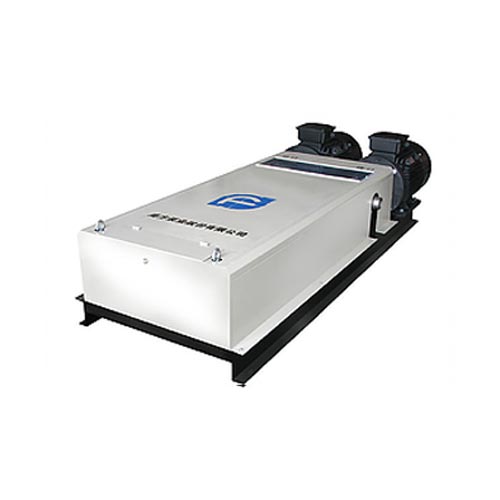

In VMHP, impellers are installed back to back so as to balance the big thrust force of the pump. The mechanical seal grinding block is made up of sea water resistant material which is special design for high pressure
